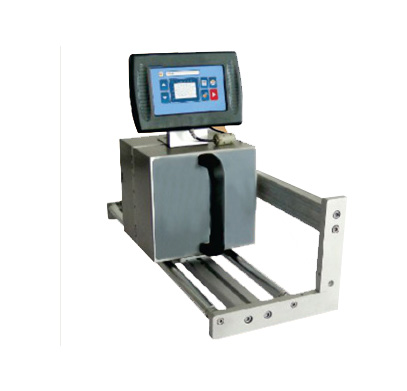

AO2 Thermal Transfer Over-Printer

AO2 Thermal Transfer Over-Printer

A02 Thermal Transfer Over-printer, one of the world's best cost-effective smart coding machines, provides excellent solutions to soft-packaging coding in a wide range of fields like food, pharmacy, dairy industries, daily use chemicals, seeds and daily use paper, etc.

Unique Design

  • Adopt the unique 24 mm width Print Head, maximum width of ribbon reaches to 25mm, utter mostly save the print cost and satisfy most of clients' printing requirements.
  • Adopt the self-own patent technology, no air needed in operation, suitable for all kinds of production environment, greatly improve the operation convenience.

Easy Operation

  • Plug-type Control Handle with a big screen, ergonomic design offers you good convenience like using a tablet computer.
  • Quick-operated menu allows you to edit and review the printing text on the screen and avoid mistakes.
  • Easy to install, convenient to change ribbons and do regular cleaning.

Efficient & Intelligent

  • Use long ribbon to reduce downtime.
  • Adopt 200dpi print head to make high quality prints of numbers, letters, characters, LOGO, real time, etc, and do no harm to the package.
  • Can print real-time date without manual updating, reduce mistakes.

In terms of overall cost, A02 has better performance than the traditional hot stamping coder.

Print Head : 24 mm, 200 dpi (8 points/mm)

Print Area : 24 mm X 40 mm

Print Mode : Intermittent

Print Frequency : Max 120 times/min

Max Length of Ribbon : 500 m

Max Width of Ribbon : 25 mm

Interface : USB

Power Supply : AC 220V

Power : 120W

Environmental Operating

Temperature : 0-40°C

Relative Humidity : 10%-90%(Noncondensing)

Air Supply : No need

Print head (Weight) : 4.8 kg

Print head (Dimension) : 170mm X 165mm X 160mm

Controller Handle (Weight) : 0.4 kg

Controller Handle (Dimension) : 170mm X 25mm X 115mm

Thermal Transfer Ribbon

Model : DG
Type : Wax / Resin
Features : Economical, can well print on most packaging film

Model : DC
Type : Premium Wax/Resin
Features : Good adhesive, Cost effective.

Model : DT
Type : Resin
Feature : Super excellent adhesive, suitable for high print requirements

Model : DB
Type : Thin Wax/Resin Feature : Longer, reduce ribbon replacement
Colors: Black, White, Red, Blue, Yellow, etc. Length: 500m, 600m
