LT 800

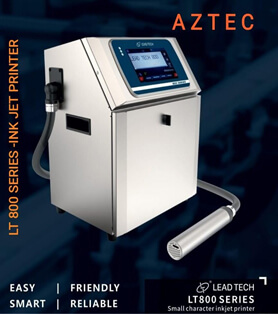

LT 800 New Generation Ink Jet Printer

LT 800 Series is the Leading Ink Jet Printer with advance features, Ease in handling, Operator Friendly, Reliable and Smart Printer. 7inch HD Display with Patented Unique LT – TOUCH Operating System. Stainless Cabinet, Robust, Durable with Excellent Aesthetic Look.

Simple Operation.
7 – Inch Touch Screen, Support Multiple Languages, Patented LT –Touch Operation.

Redefine the Information Editor, Support Drag and Drop Editing, More Diversified Contents.

Modular design – integrated ink core system
More stable and reliable, easy to maintain due to less spare parts

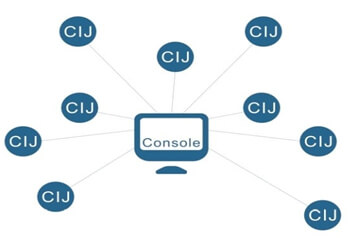

Network Base System
Monitor by one System – up to 255 printers
Fully Controlled by PC
Remotely real- time Monitoring & Editing
External Communications

BUILT – IN HELP

Installation Video

Trouble- shooting Guidance

In-built Service Manual

UPGRADED PRINT HEAD – Modularized, Lesser Spare Parts – Easy to Maintain

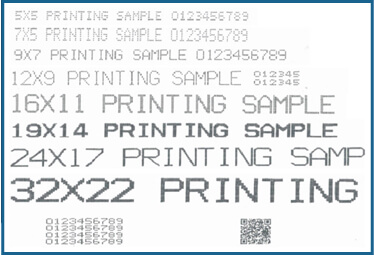

Optimizing Font Beauty – Customize fonts available

Product Details

Printer Model	LT 800 Series
Printing Lines	Up to 5 Lines
Nozzle SIZE	40µm / 50µm / 60µm
Print Height	1-12mm, depends on the font
Printing Distance	2mm-20mm, Ideal distance -10mm
Printing direction	360 degree all- round Printing
Temperature	0-45 Degree C
Humidity Range	0-95% Relative humidity, non- condensing
Power	AC100-240V 50/60Hz, 60VA
Net Weight	18kg.
Data Interface	USB, RS485, ETHERNET
PROTECTION	IP 65
